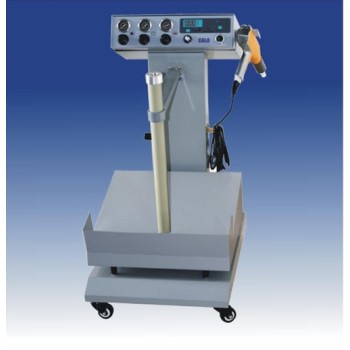

china super quality powder coating system

group name: Box feed manual powder coating equipment

Min Order: 1 piece

brand name: HICOLO

model: COLO-610V

Nearest port for product export: Shanghai, Ningbo

Delivery clauses under the trade mode: FOB, CFR

Acceptable payment methods: T/T, PayPal, Westem Union

Export mode: Have the independent export and import right

update time: Thu, 23 May 2013 22:17:32 GMT

contact supplier

Packging & Delivery

Min Order1 piece

Briefing

1.Vibrating Manual Powder Coating Equipment
2.requires quick color changes
3.digtal display
4.competitive price

Detailed

Technical Data:

Control air unit

Input voltage: 220V/110V
Frequency: 50HZ/60HZ
Input power:50W
Output voltage:Max 20V(peak to peak)
Output current: 0.7 A
Control voltage: 24V/DC
Work temperature range: -5°C-40°C
Safety: IP54
Compressed air moisture content: 1.3g/m3 max
Input air pressure:4-8kg/m3
Input barometric pressure: 6-8 bar
The largest air consumption:24m3/h

Powder spray gun

High Pressure Mode: Inside
Max Power Injection: 650g/min
Max Output Current:150uA
Polarity: Negative
Output voltage: 0-100KV max
Gun weight: 550g
Output voltage:Max 20V(peak to peak)
Connection cable: 5M

Input voltage: 220V/110V	Frequency: 50HZ/60HZ	Input power:50W
Output voltage:Max 20V(peak to peak)	Output current: 0.7 A	Control voltage: 24V/DC
Work temperature range: -5°C-40°C		Safety: IP54
Compressed air moisture content: 1.3g/m3 max		Input air pressure:4-8kg/m3
Input barometric pressure: 6-8 bar	The largest air consumption:24m3/h

High Pressure Mode: Inside	Max Power Injection: 650g/min	Max Output Current:150uA
Polarity: Negative	Output voltage: 0-100KV max	Gun weight: 550g
Output voltage:Max 20V(peak to peak)		Connection cable: 5M
